BMW N54 Ignition Coil and Spark Plug Kit 2006-2016: 6 Delphi GN10571 Coils, 6 Bosch ZGR6STE2 Spark Plugs
IA Euro
BMW N54 Ignition Coil and Spark Plug Kit 2006-2016: 6 Delphi GN10571 Coils, 6 Bosch ZGR6STE2 Spark Plugs
Check fitment & part details- Availability
- In stock
- Maker
- IA Euro
- Part type
- Ignition Coil and Spark Plug Kit
Free US shipping on orders of $149 or more. 45-day returns on eligible items.
Fitment and details
The IA EURO Delphi GN10571 and Bosch ZGR6STE2 set is an ignition coil and spark plug kit that replaces BMW 12138616153 (coil) and 12120037244 (spark plug). Per the supplier listing, the Bosch ZGR6STE2 is a Super Plus spark plug with a standard, nickel tip center electrode and multiple ground electrodes.
What's in the kit?

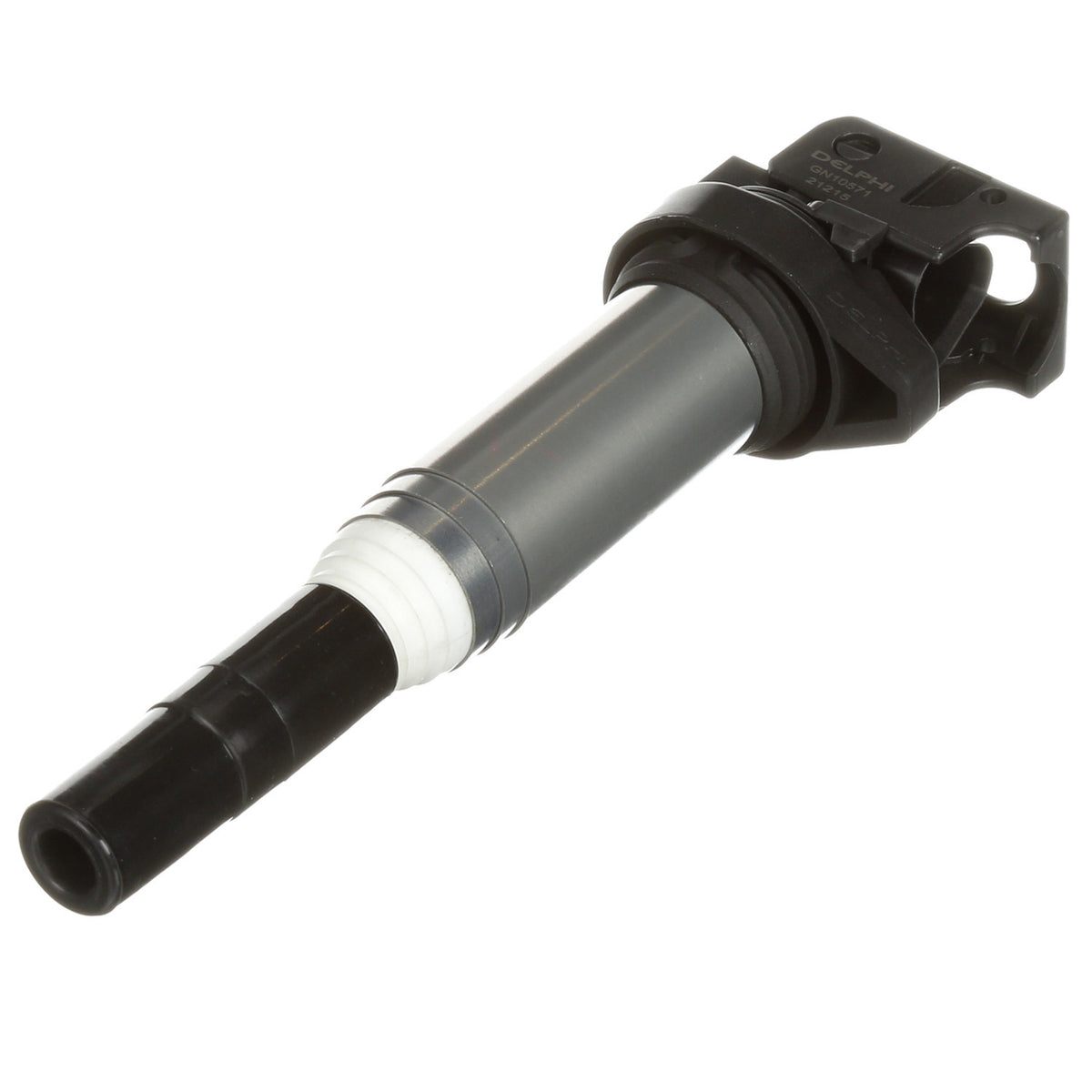

- Ignition coils: 6 x Delphi GN10571 (BMW 12138616153)

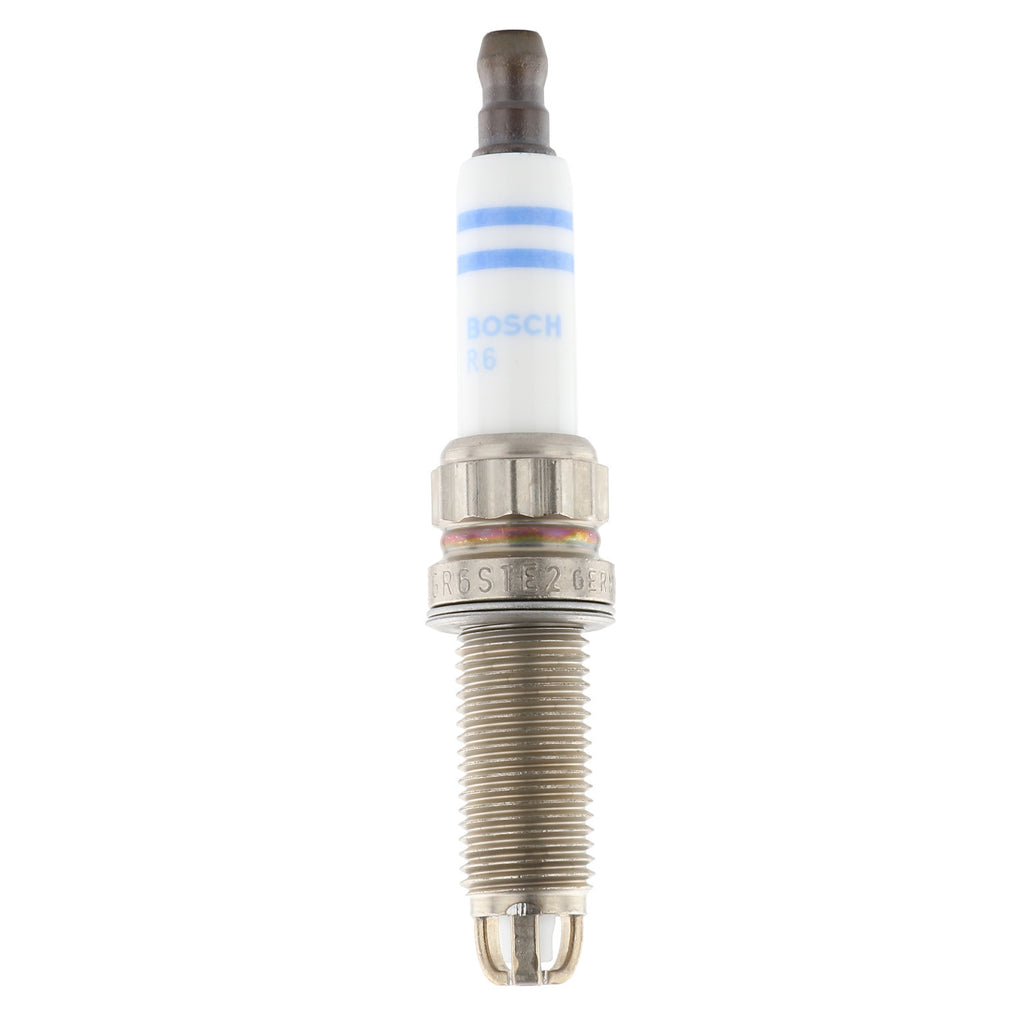

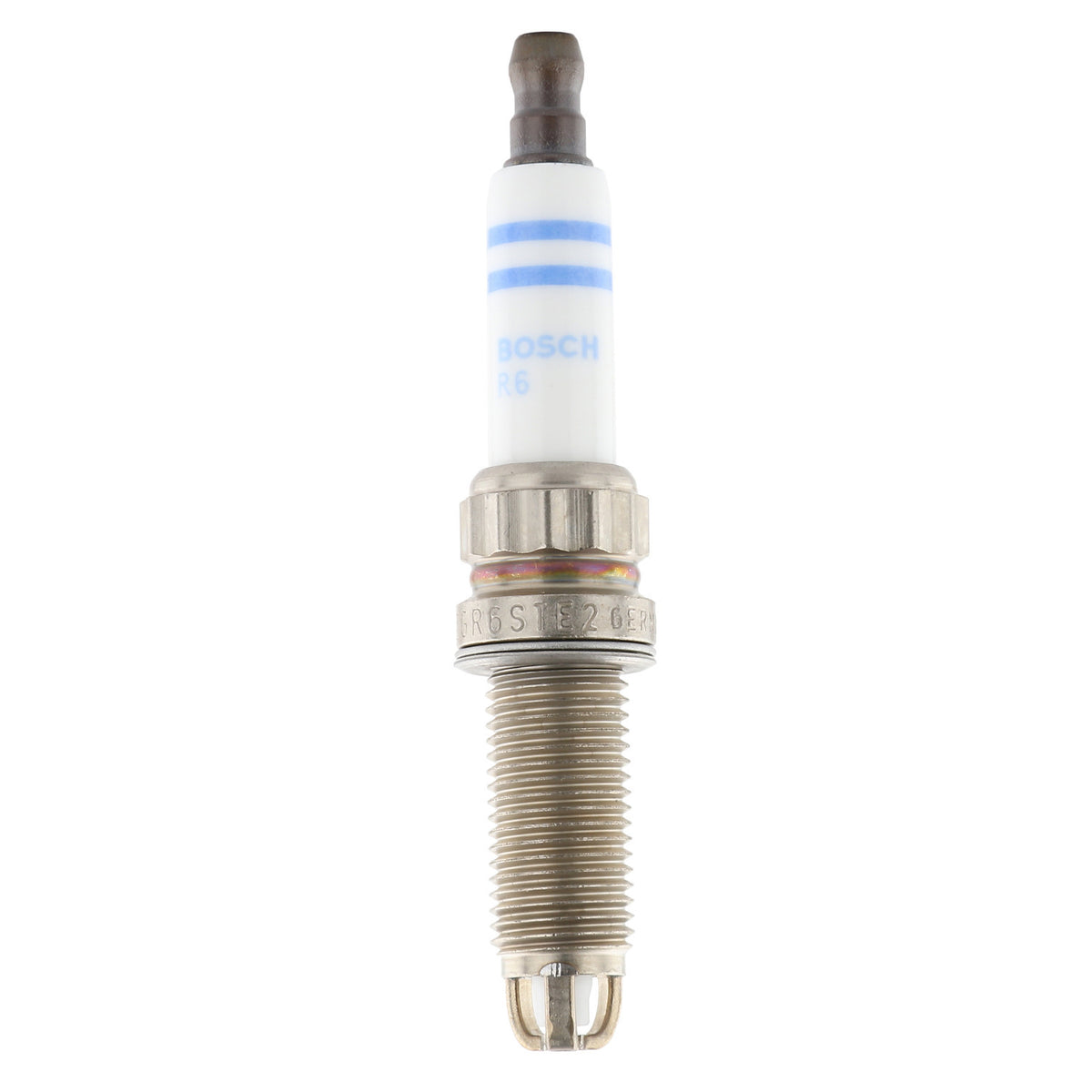

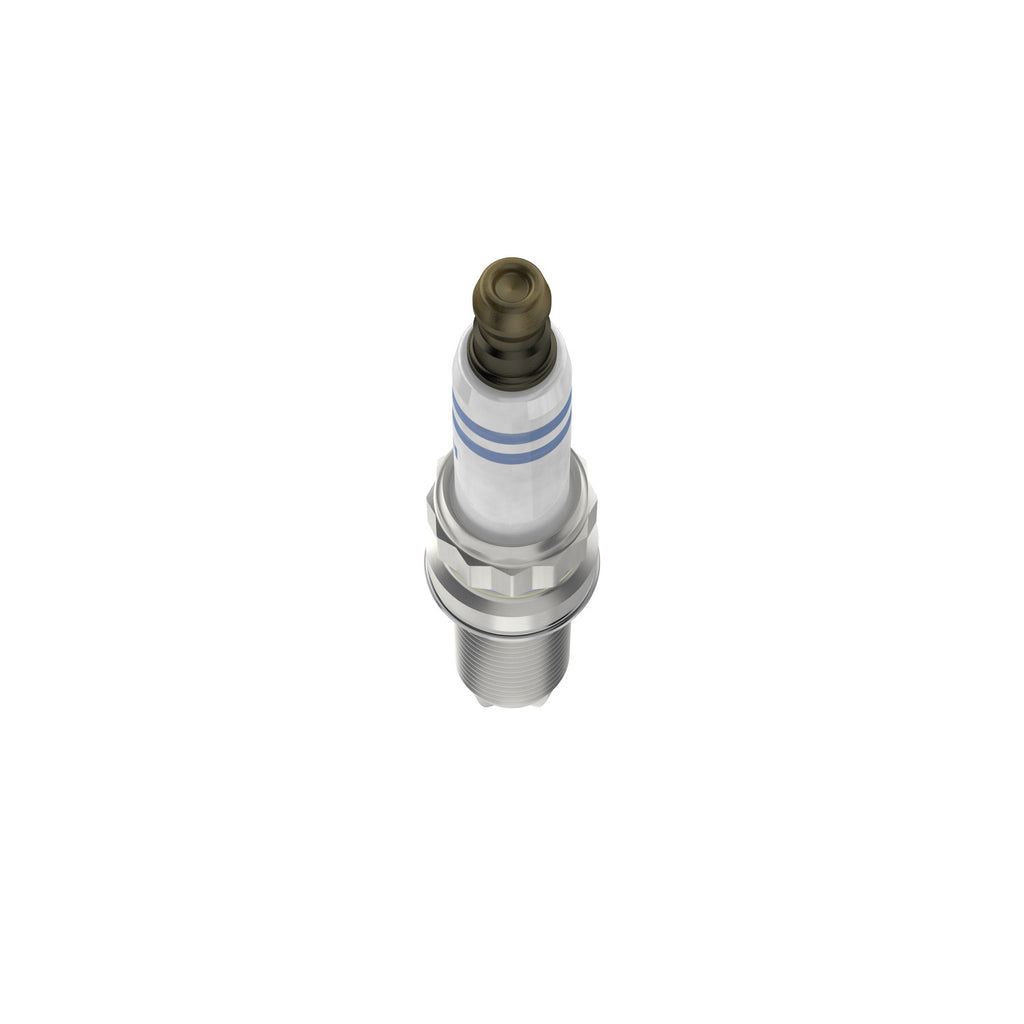

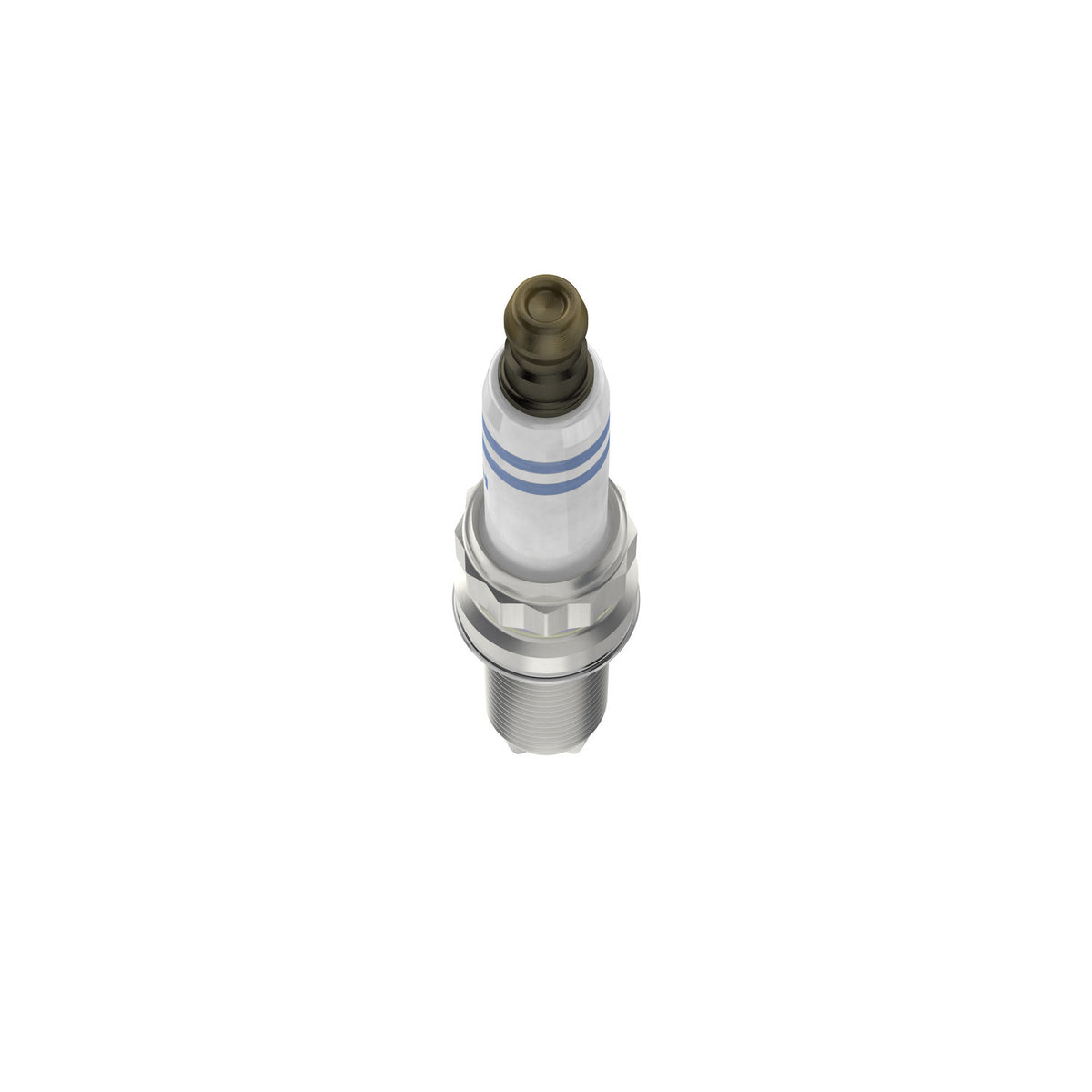

- Spark plugs: 6 x Bosch ZGR6STE2 (BMW 12120037244)
- Coils (per the supplier listing): Delphi GN10571, Direct Ignition Coil, OE Replacement
- Spark plugs (per the supplier listing): Bosch ZGR6STE2, Super Plus
- Heat range (Bosch scale): 6
- Pre-gap: .7 MM
- Thread diameter and reach: 12 MM and 26.5 MM
- Hex size, hex type and seat type: 14, Bi-Hex and Flat
- Electrode tip material (center / ground): Nickel / Nickel
- Resistor: Yes

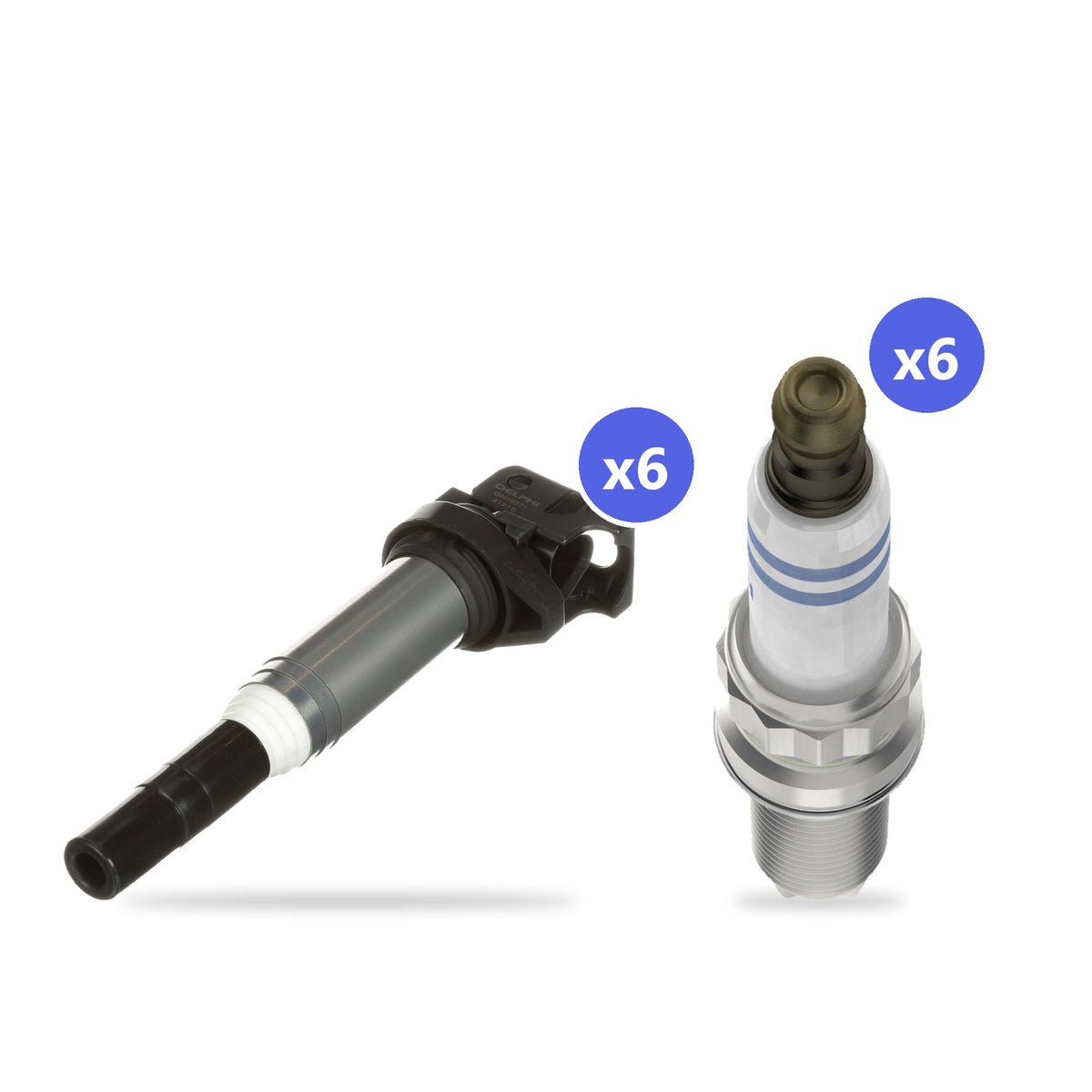

- What's included: 6 ignition coils (Delphi GN10571) and 6 spark plugs (Bosch ZGR6STE2).
Which BMWs does it fit?
This fits the following BMWs, per BMW's parts catalog, US models, data through December 2019:
- 2007-2010 BMW 535i (E60 LCI Sedan) N54 (built 03/2007 - 12/2009)
- 2007-2010 BMW 535xi (E60 LCI Sedan) N54 (built 03/2007 - 12/2009)
- 2007-2010 BMW 535xi (E61 LCI Wagon) N54 (built 03/2007 - 03/2010)
- 2008-2010 BMW X6 xDrive35i (E71 SUV) N54 (built 01/2008 - 03/2010)
- 2008-2010 BMW 135i (E82 Coupe) N54 (built 12/2007 - 02/2010)
- 2008-2010 BMW 135i (E88 Convertible) N54 (built 03/2008 - 02/2010)
- 2009-2016 BMW Z4 sDrive35i (E89 Roadster) N54 (built 02/2009 - 08/2016)
- 2007-2008 BMW 335i (E90 Sedan) N54 (built 09/2006 - 08/2008)
- 2007-2008 BMW 335xi (E90 Sedan) N54 (built 03/2007 - 07/2008)
- 2009-2010 BMW 335i (E90 LCI Sedan) N54 (built 09/2008 - 02/2010)
- 2009-2010 BMW 335xi (E90 LCI Sedan) N54 (built 09/2008 - 02/2010)
- 2006-2010 BMW 335i (E92 Coupe) N54 (built 06/2006 - 02/2010)
- 2008-2010 BMW 335xi (E92 Coupe) N54 (built 09/2007 - 02/2010)
- 2007-2010 BMW 335i (E93 Convertible) N54 (built 12/2006 - 02/2010)
- 2010-2012 BMW 740i (F01 Sedan) N54 (built 03/2010 - 06/2012)
- 2010-2012 BMW 740Li (F02 Sedan) N54 (built 03/2010 - 06/2012)
- 2011-2012 BMW 1 Series M (E82 Coupe) N54T (built 03/2011 - 12/2011)
- 2010-2016 BMW Z4 35is (E89 Roadster) N54T (built 03/2010 - 08/2016)
- 2010-2013 BMW 335is (E92 LCI Coupe) N54T (built 05/2010 - 06/2013)
- 2010-2014 BMW 335is (E93 LCI Convertible) N54T (built 03/2010 - 10/2013)
2020 and newer: BMW's catalog data we use ends with cars built in December 2019 (some sold as 2020 models); later builds are not listed here. Confirm by VIN.
FAQ
- What is in the box? 6 ignition coils (Delphi GN10571) and 6 spark plugs (Bosch ZGR6STE2), sold together as one kit.
- Which BMW numbers does this kit replace? Per BMW's parts catalog, the Delphi GN10571 coils replace BMW 12138616153 and the Bosch ZGR6STE2 spark plugs replace BMW 12120037244.
- How do I confirm it fits my BMW? Send us your 17-digit VIN before you order and we'll confirm fit. The BMW catalog data we use is not current for the newest model years, so newer cars need a VIN check.
Confirm fit by VIN before ordering: send us your 17-digit VIN and we'll check it.
