Engine code
B57D30O0 · 2,993 cc · single variable-geometry turbocharger common-rail diesel inline-6 · US catalog listing 11/2017-06/2018 · G30 540d xDrive
The B57 is BMW's 3.0 liter inline-six diesel of the B engine family. BMW's training says the block is a new design that borrows its basic layout from the N57TU, and that the engine follows BMW's modular engine strategy, which reuses parts and workshop tools across the family.
BMW's parts catalog lists one US-market car with the B57: the G30 540d xDrive, built 11/2017 to 06/2018. We have not established that it was delivered to US customers. BMW's North American training describes a planned US-market diesel G30, with the B57 in the upper performance class, and BMW's February 2017 oil bulletin has a row for the G30 with all-wheel drive and the B57. BMW's training marks the B57D30T0 version as not for the US.
NHTSA's recall model lists for 2017 and 2018 show no 540d, so there is no recall record to check.
Scope: BMW's parts data used here ends in 2019. B57 versions after that, including the B57D30T2 and B57D30O2 codes named in BMW's fluid documentation, are beyond scope and are not described.
Quick read
- Ownership position: Not established yet. We are still researching this engine.
- Reliability: Not established yet. We are still researching this engine. No NHTSA recall record for a US B57 car was found.
- Cost to own: Not established yet. We are still researching this engine.
- Power potential: Not established yet. We are still researching this engine. BMW's training rates the US-listed B57D30O0 at 195 kW (265 HP) and 620 Nm.
- Main watch item: Not established yet. We are still researching this engine.
B57 At a Glance
| Question | Practical answer |
|---|---|
| Sold in the US | BMW's parts catalog lists one US-market car with the B57: the G30 540d xDrive, built 11/2017 to 06/2018. We have not established that it was delivered to US customers. |
| Where you find it | US parts catalog listing: 540d xDrive (G30 sedan), built 11/2017-06/2018. Other markets: see Factory Deep Dive. |
| Factory output (B57D30O0) | 195 kW (265 HP) at 4,000 rpm and 620 Nm at 2,000-2,500 rpm, per BMW's training. |
| Emissions | Euro 6 and LEV III in BMW's comparison table. BMW's training lists a diesel particulate sensor that is fitted only on the US version. |
| Fuel system | Piezo injectors (CRI 3.25) at up to 2,500 bar, a CP4.2/25 high-pressure pump and DDE 8.32 engine electronics. |
| Engine oil | 6.9 quarts (6.5 liters) for the G30 with all-wheel drive per BMW's bulletin, and 6.5 liters in BMW's fluid data; grade 0W-30 LL12FE per BMW's oil chart. |
| Reliability profile | Not established yet. We are still researching this engine. |
| Typical annual planning budget | Not established yet |
| Common tuned street range | Not established yet |
Technical Specifications
Values are for the US-listed B57D30O0 unless stated.
| Specification | Detail |
|---|---|
| Configuration | Inline-six diesel, four valves per cylinder, two-part aluminum cylinder head with a camshaft carrier and cross-flow cooling, single variable-geometry turbocharger. |
| Engine code | B57D30O0: O is the upper performance class, T the top class and S the super class. |
| Displacement | 2,993 cc, 84 mm bore x 90 mm stroke |
| Compression ratio | 16.5:1 |
| Power | 195 kW (265 HP) at 4,000 rpm, per BMW's training |
| Torque | 620 Nm at 2,000-2,500 rpm, per BMW's training |
| Crankcase | Heat-treated full aluminum crankcase, closed deck and deep skirt. Cylinder walls carry a sprayed metal coating about 0.2 mm thick instead of cast-iron liners. |
| Crankshaft | Forged C38modBY steel, 55 mm main journals, 50 mm rod journals |
| Cylinder head gasket | Three-layer metal gasket sold in three thicknesses, marked by holes: one hole is the thinnest and three holes the thickest. |
| Valves | Intake valve 27.2 mm, exhaust valve 24.6 mm, maximum lift 8.5 mm, as BMW lists for the N57TU timing that the B57 shares. |
| Fuel system | CRS 3 common rail, CP4.2/25 pump, CRI 3.25 piezo injectors, HFR 25 rail, up to 2,500 bar. A valve in the leakage line holds injector return pressure at 9-11 bar. |
| Turbocharger | One variable-turbine-geometry turbocharger on plain bearings with an electric vane controller; the milled aluminum compressor wheel is coated with phosphorus-nickel. |
| Exhaust gas recirculation | High-pressure and low-pressure EGR; the low-pressure side works only above 60 degrees C coolant and 9 degrees C ambient. |
| Engine management | DDE 8.32 |
| Emissions | Euro 6 / LEV III; particulate filter, SCR and, on the US version, a particulate sensor. |
| Firing order | 1-5-3-6-2-4 |
| Crankcase vacuum | 37 mbar |
| Engine oil capacity | 6.9 quarts (6.5 liters), G30 with all-wheel drive |
| Oil pressure relief | Opens above 11 bar |
| Sump sealing | Loctite 5970 on the sump flange, as on the N57 |
| Coolant capacity | Not established |
Factory Deep Dive
US version versus the other B57 versions
BMW's training separates the classes by letter. The US-listed engine is the upper class, B57D30O0. The B57D30T0 has a cooled low-pressure turbocharger compressor housing and laser-remelted piston bowl rims, and BMW marks the cooled housing as not for the US. The US version also gets a diesel particulate sensor, as the N47TU and N57TU already did in the US.
Against the N57TU, BMW's training compares 1,800 bar solenoid injectors and DDE 7.41 on the N57D30O1 with 2,500 bar piezo injectors and DDE 8.32 on the B57D30O0.
Block, head and cylinder walls
The block has a two-part water jacket with modified flow control to cool the cylinder bridges better. BMW sets two rules for preparing the head gasket face: plug the oil feed passages beforehand, and keep machining tools off the surface. The bore coating is so thin that BMW rules out machining the cylinders.
Timing drive and valvetrain
The chains run at the back of the engine, on the flywheel side: a two-stage chain set turns the camshafts and the high-pressure pump, and a chain of its own drives the oil and vacuum pump. As on its predecessor, the camshafts are built up, with lobes and gears fitted onto a tube, and the exhaust camshaft gear is spring-tensioned.
Oil supply and piston cooling
A fully variable vane oil pump is controlled by the engine electronics from an oil pressure sensor, with a fixed backup control loop for faults. Piston cooling is switched by a central valve: it is active from 1.0 bar oil pressure and always active when the oil is below 20 degrees C, and can be switched off at part load. The oil filter module stands upright near cylinder 5, and loosening the cover about 2 turns drains the filter back to the sump.
Cooling
A vacuum-controlled coolant pump can stop flow to the block during warm-up, and heat from the EGR coolers warms the engine oil through a secondary thermostat.
Air, boost and exhaust
The variable-geometry turbocharger runs on plain bearings, with revised vanes and turbine wheel for this engine. A throttle valve restricts intake air during particulate filter regeneration and EGR, and closes when the engine stops. BMW lists the engine against Euro 6 and LEV III.
Fuel injection
The CRI 3.25 piezo injectors work at up to 2,500 bar. Each injector carries a code that the engine electronics need for the right cylinder after a replacement.
SCR tanks
The G30 with this engine carries 12.5 liters in the active urea tank and 8.5 liters in the passive tank, both under the rear right of the car.
Where else BMW fitted the B57
BMW's parts data lists B57 types in ECE, Russian, Indian, Thai and Brazilian catalogs, with the first types starting 10/2014. ECE is BMW's European-specification catalog:
- B57: 7 Series (G11, G12) 730d and 740d, 5 Series (G30, G31) 530d and 540d, 6 Series GT (G32) 630d and 640d, X3 (G01), X4 (G02), X5 (G05), X6 (G06), X7 (G07), 8 Series (G14, G15, G16) 840d and 3 Series (G20, G21) 330d.
- B57S: 750d (G11, G12), M550d (G30, G31), X5 M50d, X6 M50d and X7 M50d.
Those type windows run to the end of the parts data in 12/2019, which is a data limit, not an end of production. Later years are beyond scope.
Service Parts at a Glance
| Part | BMW part number (current) | Note |
|---|---|---|

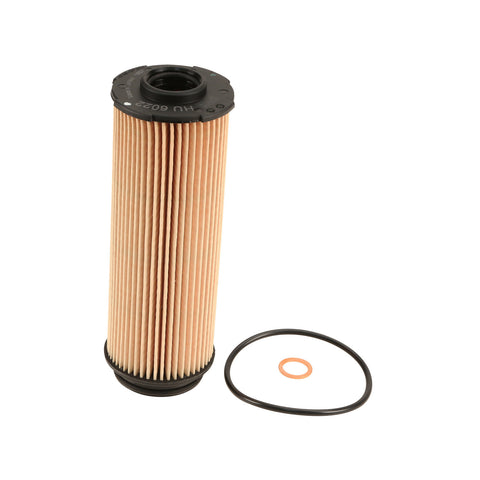

| Oil filter element set | 11428583898 | The same number is also listed on B58 cars |
| Oil filter cover | 11428583900 | |
| Fuel filter cartridge | 13328591019 | Replaces the earlier number in the chain |
| Air filter element | 13718577170 or 13718691835 | BMW's parts data lists both for this car; confirm by VIN |
| Glow plug | 12230035934 | Six per engine. BMW's parts data says GLP5 and GLP6 glow plugs must not be mixed. |
| Coolant pump, variable flow | 11518582740 | |
| Thermostat housing with thermostat | 11538576289 or 11538576288 | Both listed for this car; confirm by VIN |
| Cylinder head cover gasket set | 11128590172 | Replaces the earlier number in the chain |
| High-pressure pump, exchange | 13518597649 | Replaces the earlier number in the chain |
Every number above was looked up against the US 540d xDrive row. Confirm against the car's VIN before ordering.
Known Failure Points and Service Items
Not established yet. We are still researching this engine. No NHTSA recall record for a US B57 car was found, and no BMW bulletin on the engine was opened apart from the oil chart, so no failure point is listed. Failure points here would need a recall, a bulletin or a BMW document behind them.
Service items from BMW's training
These are cautions BMW gives technicians, not reports of faults.
- After an injector is replaced, its printed code has to be assigned to the correct cylinder in the engine electronics.
- The sprayed cylinder wall coating cannot be machined.
- The piston cooling oil spray nozzles must be positioned exactly, or the engine can be damaged.
- The tensioned exhaust camshaft gear ships with an installation pin that is removed after fitting.
- After chain drive work, the high-pressure pump is set to the crankshaft with a gauge.
- Replacing the crankshaft or main bearing shells calls for bearing shell classification.
- The connecting rod caps are fracture-split, so a cap fitted to the wrong rod means replacing the whole rod set.
Reliability Verdict
Not established yet. We are still researching this engine.
Power Potential
Not established yet. We are still researching this engine. BMW's training rates the US-listed B57D30O0 at 195 kW (265 HP) at 4,000 rpm and 620 Nm at 2,000-2,500 rpm, and this guide gives no tuning figures.
Cost of Ownership
Not established yet. We are still researching this engine.
Common Questions
What BMW models have the B57 engine?
In BMW's parts data the B57 appears in the 7 Series (G11, G12), 5 Series (G30, G31), 6 Series GT (G32), 8 Series, 3 Series (G20, G21), X3, X4, X5, X6 and X7 diesels, mostly in cars from the ECE (European-specification) catalog. In the US catalog the only B57 car is the G30 540d xDrive.
Was the B57 sold in the US?
BMW's parts catalog lists one US-market car with the B57: the G30 540d xDrive, built 11/2017 to 06/2018. We have not established that it was delivered to US customers.
How much oil does the B57 take?
BMW's bulletin lists 6.9 quarts (6.5 liters) for the G30 with all-wheel drive and the B57, and BMW's oil chart lists 0W-30 LL12FE for the B57 in model year 2016 and newer.
How much power does the US-listed B57 make?
BMW's training lists the B57D30O0 at 195 kW (265 HP) at 4,000 rpm and 620 Nm at 2,000-2,500 rpm.
Is the B57 the same engine as the N57?
No. BMW's training describes the B57 as having a redesigned block, and lists 2,500 bar piezo injectors and DDE 8.32 against the N57TU's 1,800 bar solenoid injectors and DDE 7.41.
Is the US-listed B57 a twin-turbo?
No. BMW's training gives the US-listed B57D30O0 a single variable-geometry turbocharger, and marks the B57D30T0 with its extra low-pressure turbocharger as not for the US.
