BMW S54 Ignition Coil and Spark Plug Kit 2001-2008: 6 Delphi GN10571 Coils, 6 NGK 7415 Spark Plugs

• Ignition coils: 6 x Delphi GN10571 (BMW 12138616153)
• Spark plugs: 6 x NGK 7415 (BMW 12120022902)

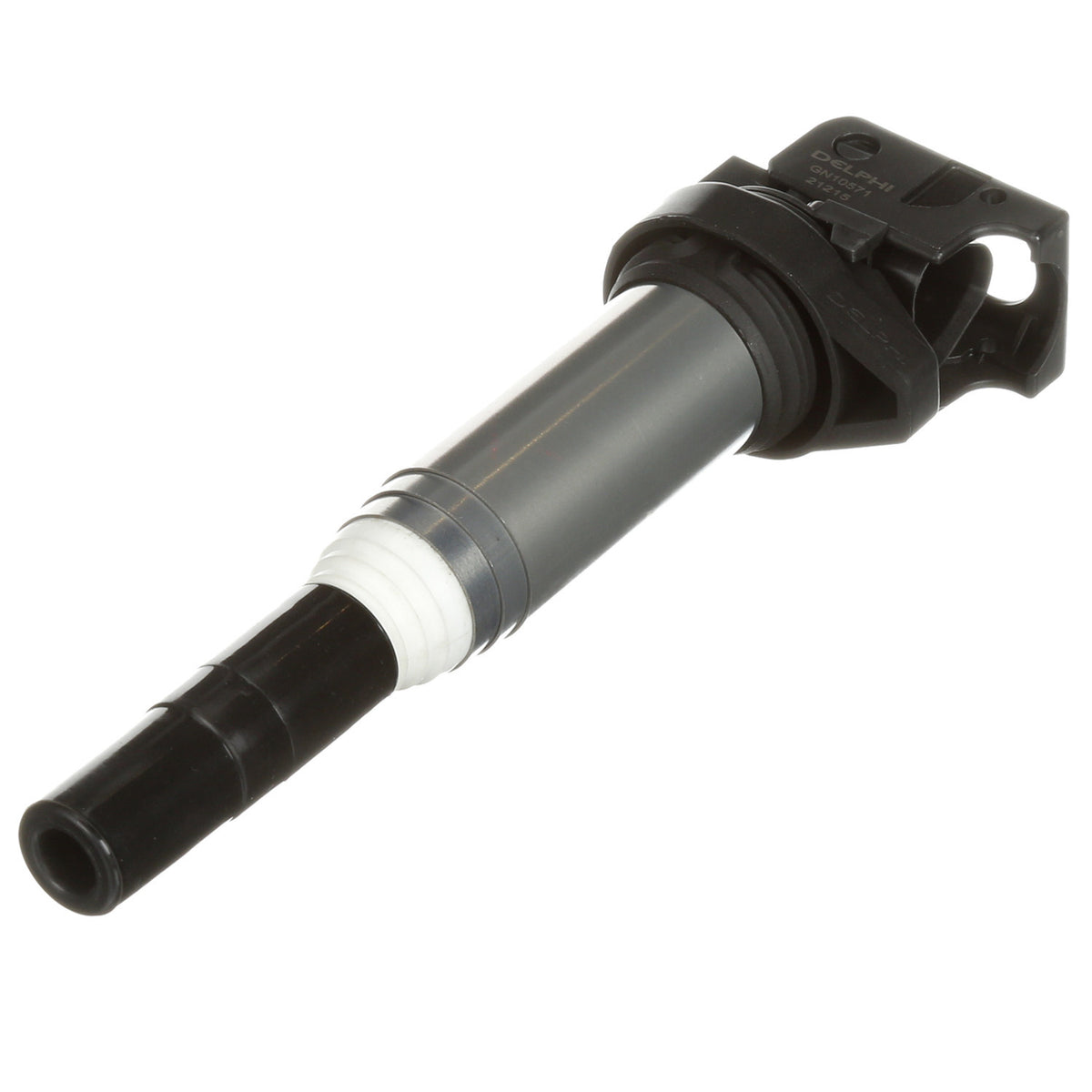

• Coils (per the supplier listing): Delphi GN10571, Direct Ignition Coil, OE Replacement

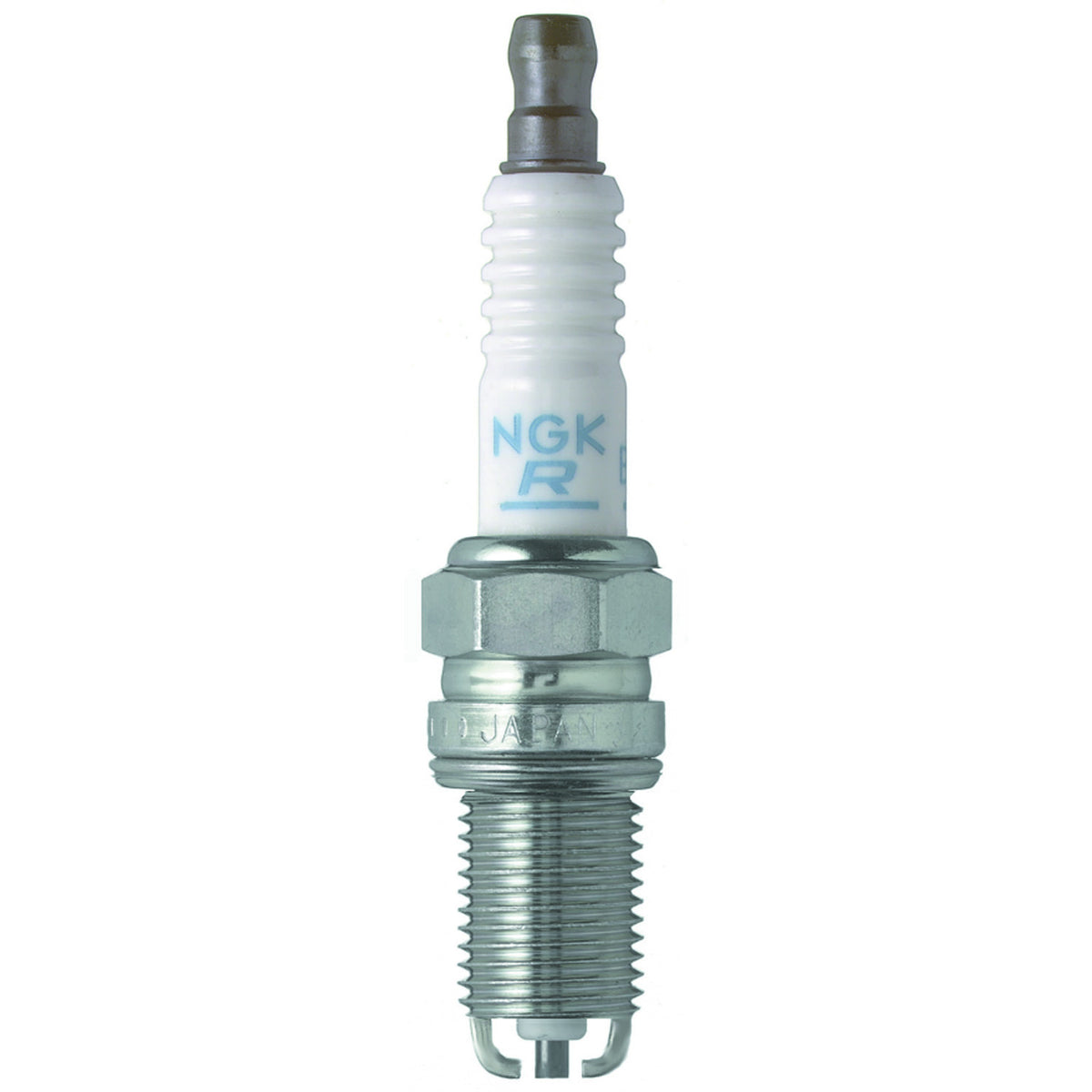

• Spark plugs (per the supplier listing): NGK 7415, DCPR8EKP, Laser Platinum
• Heat range (NGK scale): 8
• Pre-gap: .036 IN
• Thread diameter and reach: 12.0 MM and 0.750 IN
• Hex size and seat type: 5/8" (16mm) and Flat
• Electrode tip material (center / ground): Platinum / Nickel
• Resistor: Yes

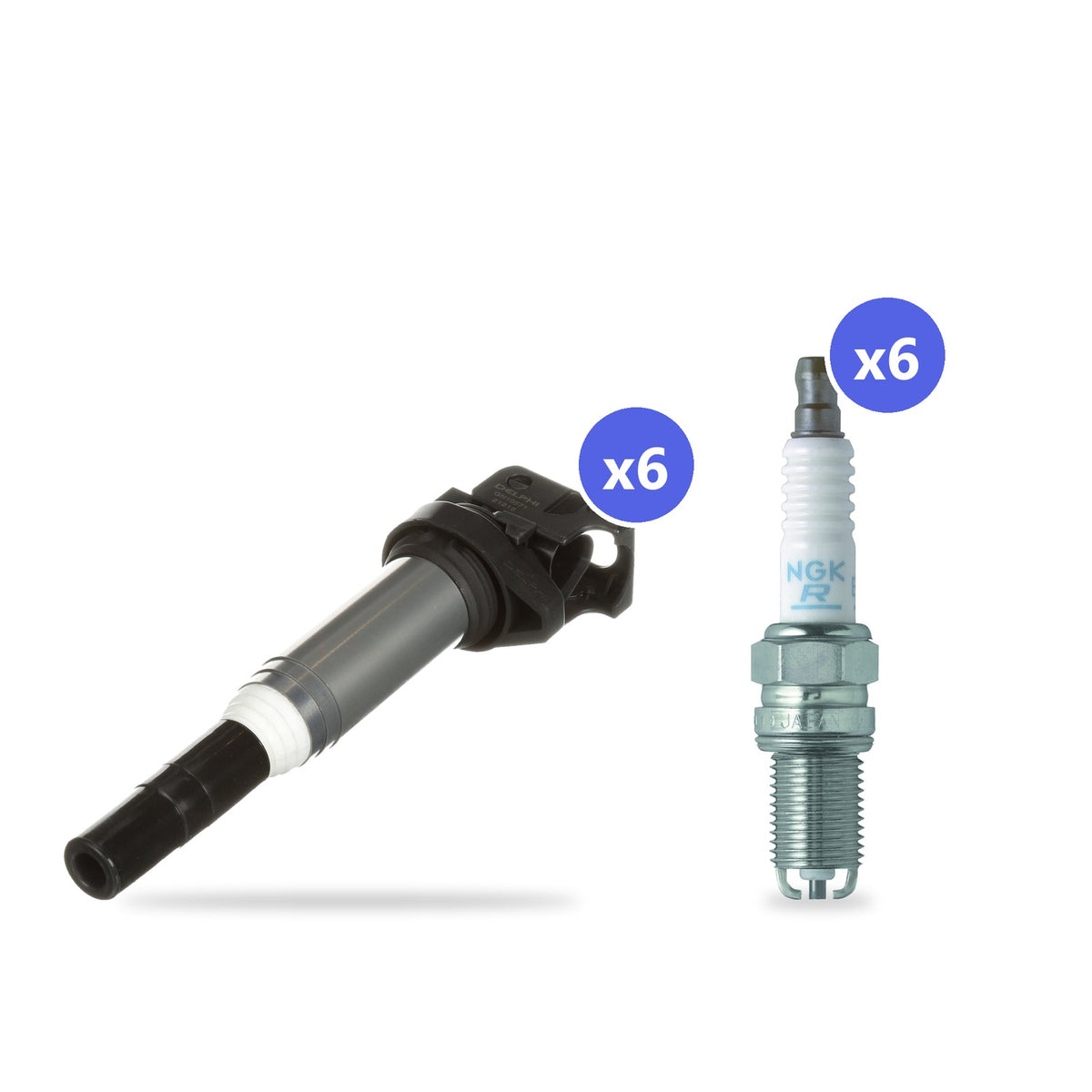

• What's included: 6 ignition coils (Delphi GN10571) and 6 spark plugs (NGK 7415).

This fits the following BMWs, per BMW's parts catalog, US models, data through December 2019:

• 2001-2006 BMW M3 (E46 Convertible) S54 (built 03/2001 - 08/2006)
• 2001-2006 BMW M3 (E46 Coupe) S54 (built 02/2001 - 05/2006)
• 2006-2008 BMW Z4 M (E85 Roadster) S54 (built 01/2006 - 08/2008)
• 2006-2008 BMW Z4 M (E86 Coupe) S54 (built 04/2006 - 08/2008)

2020 and newer: BMW's catalog data we use ends with cars built in December 2019 (some sold as 2020 models); later builds are not listed here. Confirm by VIN.

• What is in the box? 6 ignition coils (Delphi GN10571) and 6 spark plugs (NGK 7415), sold together as one kit.
• Which BMW numbers does this kit replace? Per BMW's parts catalog, the Delphi GN10571 coils replace BMW 12138616153 and the NGK 7415 spark plugs replace BMW 12120022902.
• How do I confirm it fits my BMW? Send us your 17-digit VIN before you order and we'll confirm fit. The BMW catalog data we use is not current for the newest model years, so newer cars need a VIN check.

Confirm fit by VIN before ordering: send us your 17-digit VIN and we'll check it.
