BMW Driveshaft Flex Disc (Guibo) Kit with Bolts and Nuts: Meyle HD 314 152 3102/HD for F23, F30, F31
F23 228i xDrive 2014-2015; F30 320i xDrive/328d xDrive/328i xDrive 2014-2015; F31 328d xDrive/328i xDrive 2014-2015
$132.99
Skip to product information
BMW Driveshaft Flex Disc (Guibo) Kit with Bolts and Nuts: Meyle HD 314 152 3102/HD for F23, F30, F31
IA Euro
BMW Driveshaft Flex Disc (Guibo) Kit with Bolts and Nuts: Meyle HD 314 152 3102/HDfor F23, F30, F31
Check fitment & part details
$132.99
- Availability
- In stock
- Maker
- IA Euro
- Part type
- Driveshaft Kit
Free US shipping on orders of $149 or more. 45-day returns on eligible items.
Fitment and details
The driveshaft flex disc (guibo) with the new bolts and self-locking nuts BMW calls for, in one order. A cracked or torn guibo shows up as a clunk on take-off, a shudder at launch or a vibration that comes and goes with load.
What's in the kit

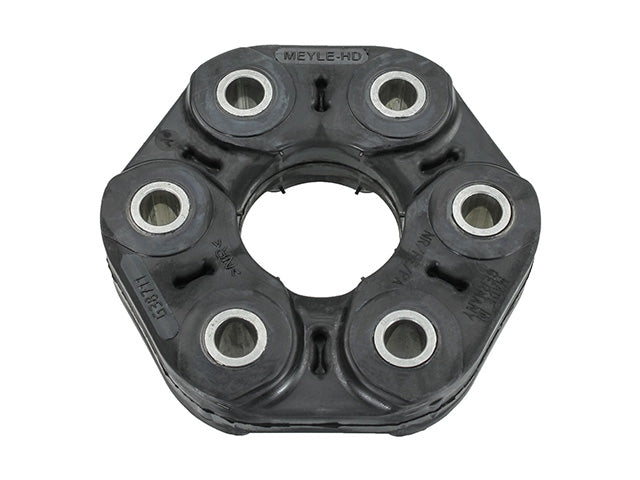

Flex disc: Meyle HD 314 152 3102/HD, replaces BMW 26 11 7 610 372.
F23 228i xDrive 2014-2015; F30 320i xDrive/328d xDrive/328i xDrive 2014-2015; F31 328d xDrive/328i xDrive 2014-2015 ($132.99)
- 1 x Flex disc: Meyle HD 314 152 3102/HD, replaces BMW 26 11 7 610 372
- 3 x ASA-Bolt: Genuine BMW 26 11 7 621 344
- 3 x Hex Bolt: OE-spec (IA Euro), replaces BMW 26 11 7 635 643
- 3 x Hex nut with flange: Genuine BMW 37 10 6 789 678
Install notes
- The flex disc bolts and nuts are one-time parts: BMW calls for new ones every time the joint comes apart, so the ones BMW lists for your car are in the box.
- Fit the disc with the arrows on its edge pointing at the flange arms, not at the bolt heads, as BMW shows.
- Mark the driveshaft against the transmission and diff flanges before it comes off, and put it back in the same spot.
Which BMWs does it fit?
Per BMW's parts catalog (ETK), US cars, data through December 2019.
F23 228i xDrive 2014-2015; F30 320i xDrive/328d xDrive/328i xDrive 2014-2015; F31 328d xDrive/328i xDrive 2014-2015
- 2014-2015 BMW 228i xDrive (F23) N26
- 2014-2015 BMW 328d xDrive (F30 LCI) N47
- 2014-2015 BMW 328i xDrive (F30 LCI) N26
- 2014-2015 BMW 328i xDrive (F31 LCI) N20
- 2015 BMW 320i xDrive (F30 LCI) N20
- 2015 BMW 328d xDrive (F31 LCI) N47
FAQ
- How do I confirm it fits? Send us your 17-digit VIN and we'll confirm every part before you order.
- Does this cover every flex disc on my car? It covers the flex disc BMW lists for the cars above, one disc per kit. Some cars, xDrive models among them, have a second joint: send your VIN and we'll tell you.
- Is the centering sleeve included? No. Replace it only if it is worn; we can add it after a VIN check.
